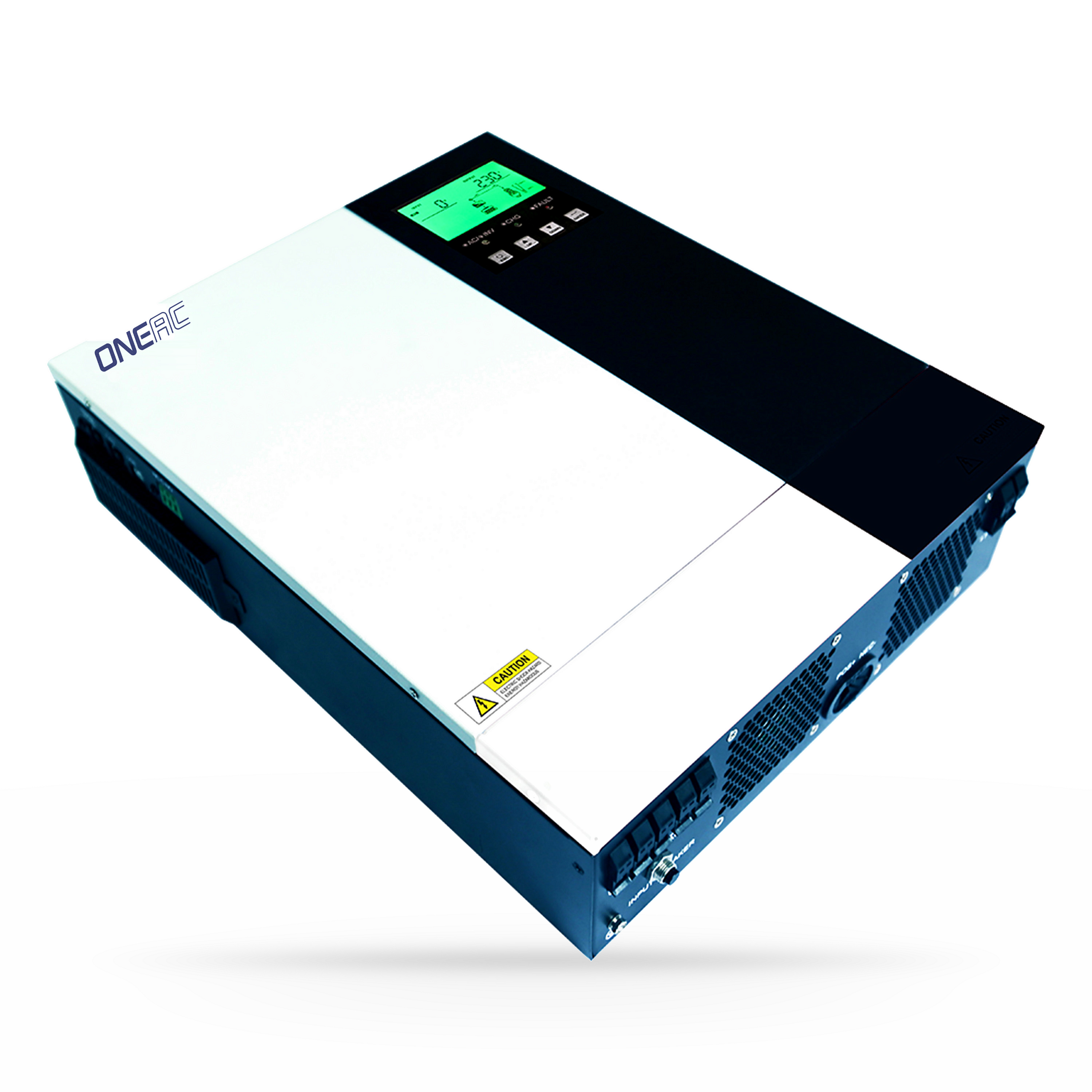

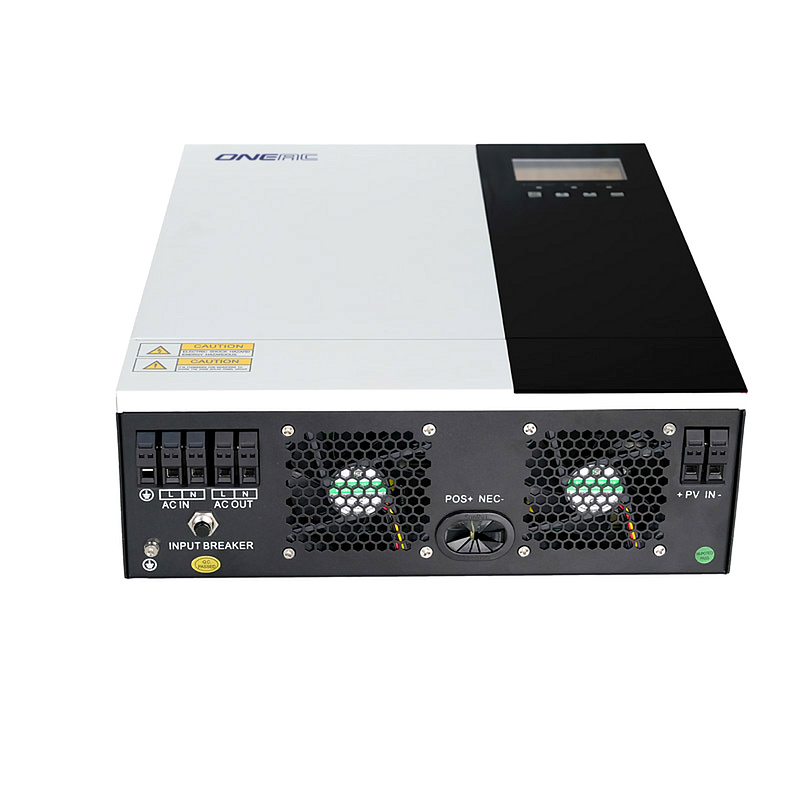

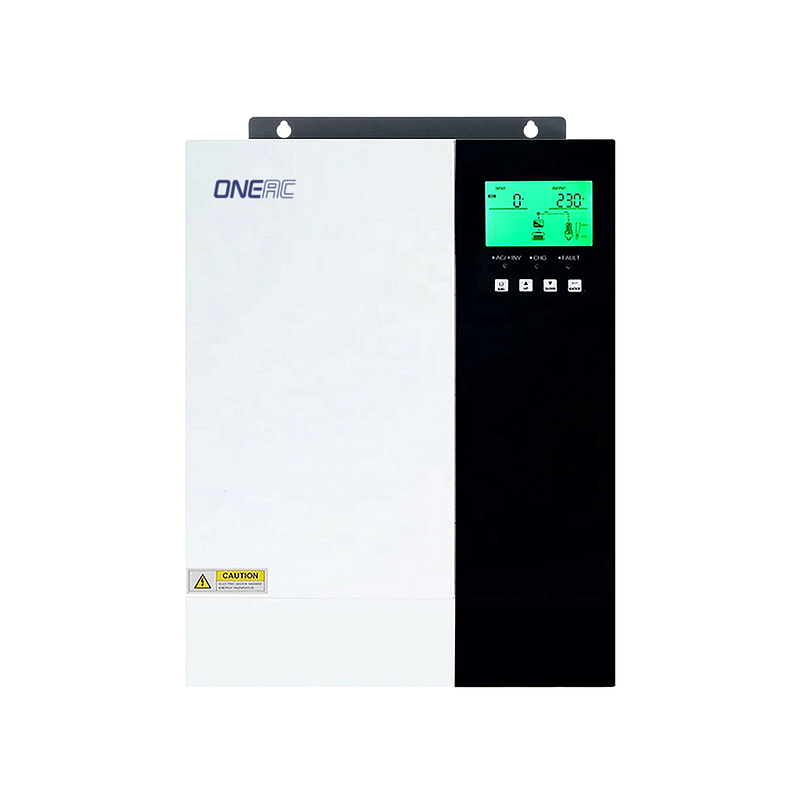

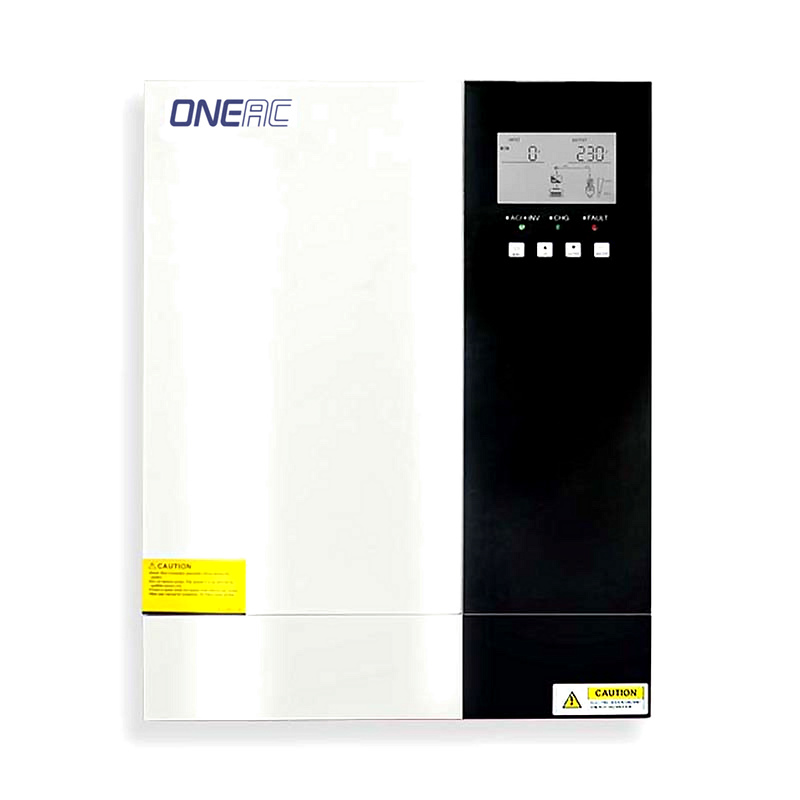

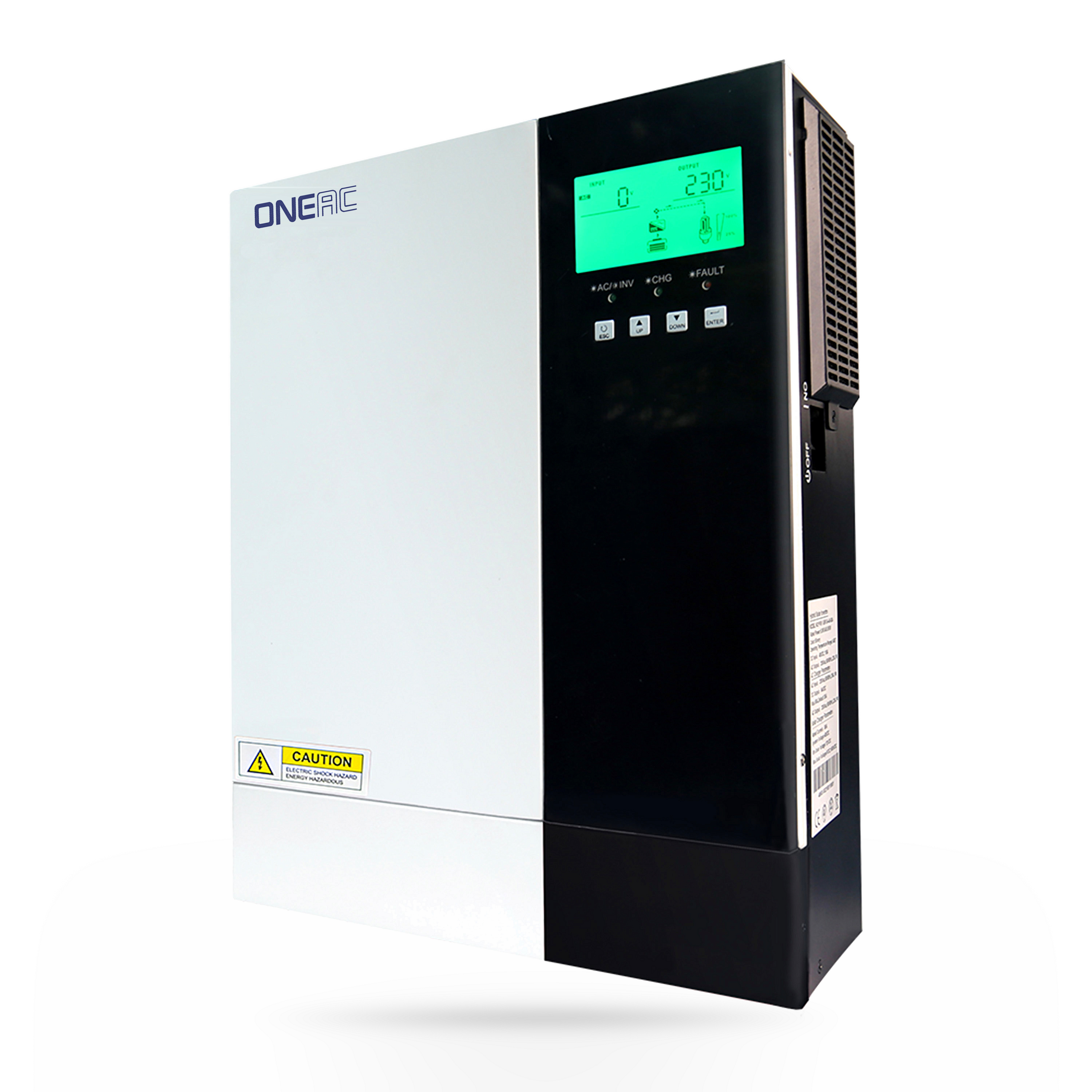

PVM Hybrid on off grid Inverter 24V 3.5KW 48V 5.5KW
Hybrid Solar Inverters

PVM Hybrid on off grid Inverter 24V 3.5KW 48V 5.5KW

3.5-5.5 kW

This is a multi-functional solar inverter/charger hybrid 3.5KW 4Kw ,5.5Kw and 6kw available, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current,AC/solar charger...

  • Pure sine wave solar inverter with FeliPO4 battery communication
  • Output power factor 1.0
  • 500V High PV input voltage range
  • Battery independent design
  • Built-in 80A MPPT solar charger
Ask about this product
Countrywide delivery 12-month local warranty Installation available
All features (9)
  • Battery equalization function to optimize battery performance and extend lifecycle
  • Built-in anti-dusk kit for harsh environment
  • Operation with battery connected:Solar Power and AC Power available/Solar Power and AC Power not available
  • Operation without battery connected:Solar Power available/AC Power available
Specifications
MODELPVM 3500-24PVM 5500-48
Rated Power3500VA/3500W5500VA/5500W
INPUT
Voltage230VAC
Selectable Voltage Range170- 280VAC (For Personal Computers)
90- 280VAC (For Home Appliances)
Frequency Range50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)230VAC±5%
Surge Power7000VA11000VA
Efficiency(Peak)90%~93%
Transfer Time10ms (For Personal Computers)
20ms (For Home Appliances)
WaveformPure sine wave
BATTERY
Battery Voltage24VDC48VDC
Floating Charge Voltage27VDC54VDC
Overcharge protection33VDC63VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage500VDC500VDC
Maximum PV Array Power4000W5500W
MPPT Operating Voltage Range120~450VDC120~450VDC
Maximum Solar Charge Current80A100A
Maximum AC Charge Current60A80 A
Maximum Charge Current80A100A
PHYSICAL
Dimension, L×W×H(mm)425x330x117
Net Weight(kg)9.510.6

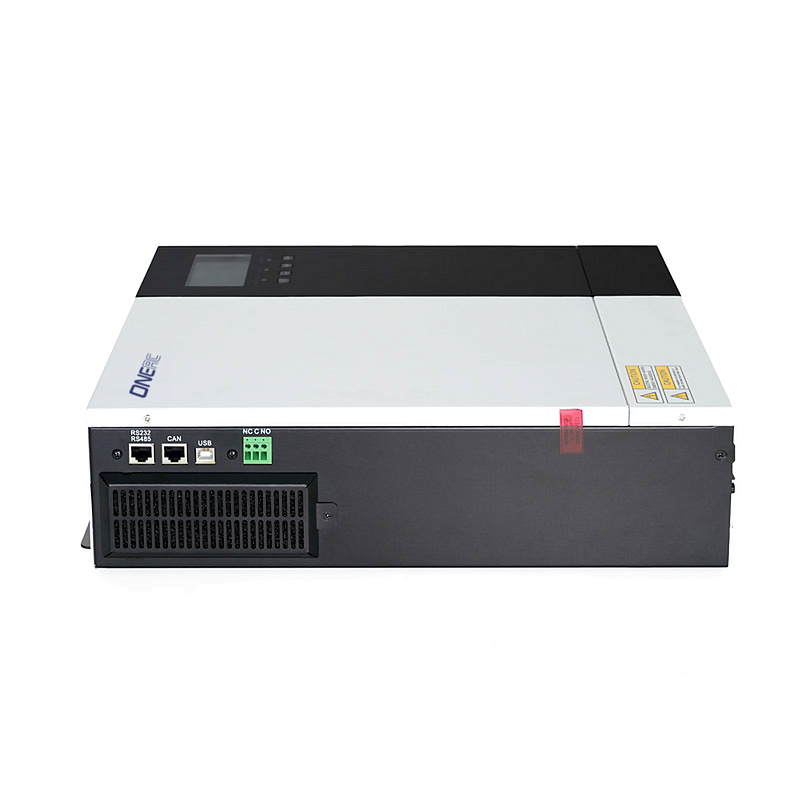

Communication InterfaceCAN/USB/RS232/RS485/Dry contact
ENVIRONMENT
Humidity5% to 95% Relative Humidity (Non-condensing)
Operating Temperature-10°C to 50°C
Storage Temperature-15°C to 60°C
