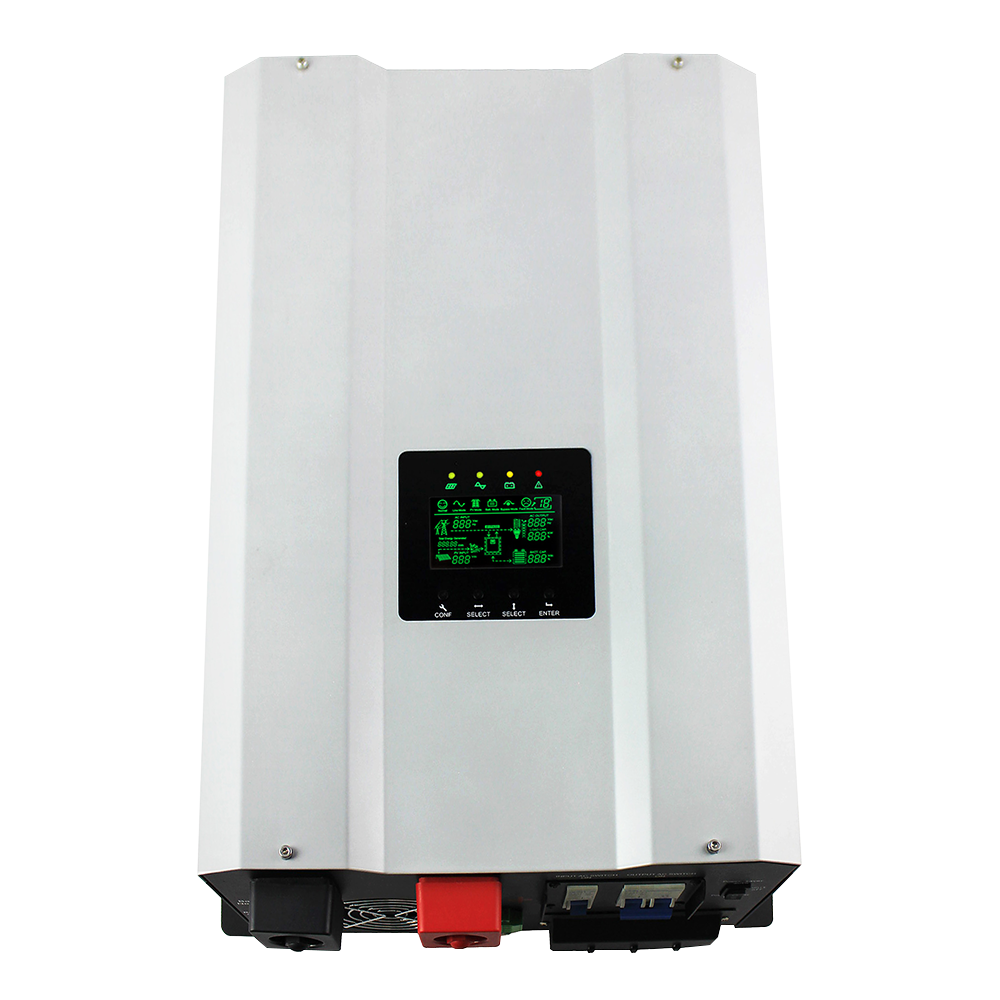

GS Series 4kw 5kw 6kw Hybrid Solar Inverter
Hybrid Solar Inverters

GS Series 4kw 5kw 6kw Hybrid Solar Inverter

4-6 kW

This is a low-voltage hybrid inverter GS series with a capacity of 4kw, 5kw, 6kw,It is suitable for working in various environments (large farms, villas, factories, forest areas, etc.), and can also be applied to common household appliances. It also has a variety of core technologies, such as multiple intelligent protection functions, anti-interference...

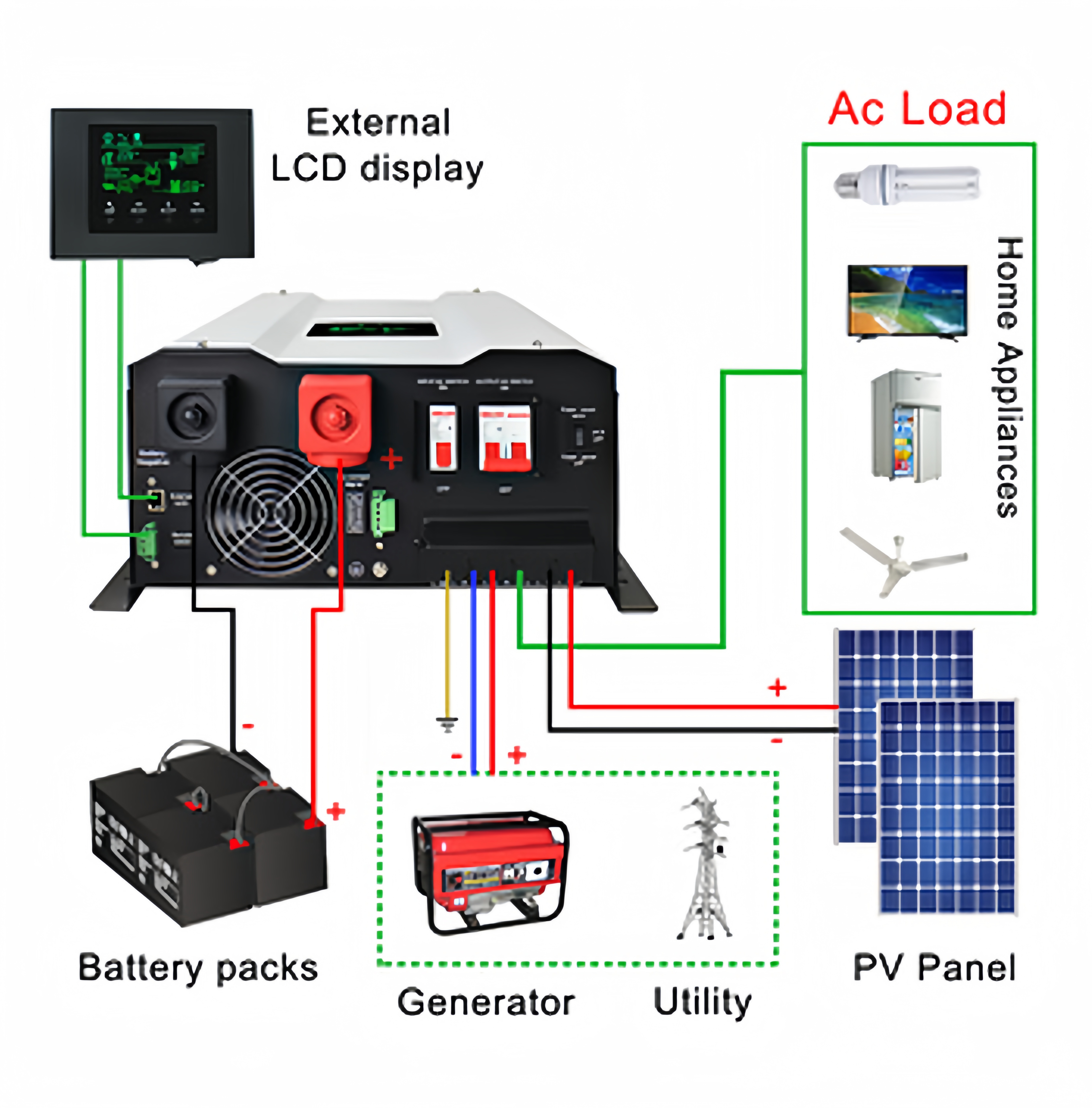

  • GS Series AC/Solar charging Off grid Hybrid lnverter.
  • LED/LCD display,Enhanced functions setting via LCD,Man-machine intelligent design.
  • Built-in 40A/60A optional MPPT solar charger controller.
  • LCD shows the solar capacity.
  • 5 stages adjustable AC charging current. AC charging also can be closed.
Ask about this product
Countrywide delivery 12-month local warranty Installation available
All features (9)
  • AC/DC priority modes can be closed.
  • Generator restart signal(Dry contact).
  • 3 times peak power.Strong loading capacity.
  • Overload,output short-circuit protection.
Specifications
ModelGS 4000GS 5000GS 6000
Power Rating4000W5000W6000W
AC Input
Input Voltage WaveformSinusoidal(utility or generator)
Nominal input Voltage120/230VAC
Low Line Disconnect85Vac±4%(Normal) or 80Vac±4%(Wide) for 120Vac 184Vac±4%(Normal) or 135Vac±4%(Wide) for 230Vac
Low Line Re-connect95Vac±4%(Normal) or 85Vac±4% (Wide) for 120Vac 194Vac±4%(Normal) or 145Vac±4%(Wide) for 230Vac
High Line Disconnect136Vac±4%(Normal) or 145Vac±4%(Wide) for 120Vac263Vac±4%(Normal) or 263Vac±4%(Wide) for 230Vac
Max AC input Voltage120Vac for Max150Vac, 230Vac for Max270Vac
Frequency50Hz:41-54Hz,60Hz:51-64Hz
AC Charger
Nominal Charge Current20A/35A/50A/70A/90A(5 stages adjustable charging current)
Over Charge ProtectionBat.V>15.5VDCfor 12V battery ； Bat.V>31.0VDC for 24V battery, Bat.VN62.0VDC for 48V battery ； beeps 0.5s every 1s & fault after 60s
Solar Charger
Rated Charge Current60A60A60A
PV Input Voltage range12VDC. 25VDC-75VDC for 24VDC. 55-145VDC for 48V
Max.PV open circuit array voltage12V for40VDC, 24V for 75VDC, 48V for 145VDC
Charger modeMPPT
PV Low Voltage Re-connectPV>Bat.V=3V
PV Low Voltage DisconnectPVWBat.V
Efficiency>97%
Charger
Nominal Charger Current20A/35A/50A/70A/90A(According to the inverter model), 5 stages adjustable charging current
Over charge ProtectionBat.V>15.5VDC/31VDC/62VDC,beeps 0.5s every 1s & fault after 60s
Efficiency
Efficiency (Battery Mode )>87%
Efficiency (Line Mode)>98%
Battery Voltage
Nominal DC Input Voltage24/48VDC
Low Battery Alarm10.5VDC±0.3VDC for 12VDC, 21VDC±0.6VDC for 24VDC, 42VDC±1.2VDC for48VDC
Low DC input shut-down20VDC±0.6VDC for 24VDC, 40VDC±1.2VDC for48VDC
High DC input Alarm & Fault32VDC±0.6VDC for 24VDC, 64VDC±1.2VDC for48VDC
Transfer Time
AC to DC20ms(max)
DC to AC15ms(max)
System Parameter
Over-Load Protection110%<load<150%, beeps 0.5s every 1s, and Fault after 60s off the output, load>150%, beeps 0.5s every 1 s, and Fault after 20s
Output Short Circuit ProtectionCurrent limit(Fault after 10s)
Surge Rating(10s)1:3(VA)
Power SaverLoad<25W(Enabled on "P/S auto"Setting of Remote control)
ProtectionsLow battery.over charging,over load,over temp
IndicatorsLED+LCD Display
General Specification
Operating Temperature Range0°C to 40°C
Storage Temperature-15°C 〜60°C
Operation humidity5% to 95%(non-condensing)
Audible Noise60dB max
CoolingForced air,variable speed fan
Dimension(L*W*H)530*400*190mm
Net Weight(kg)30.035.539.0
