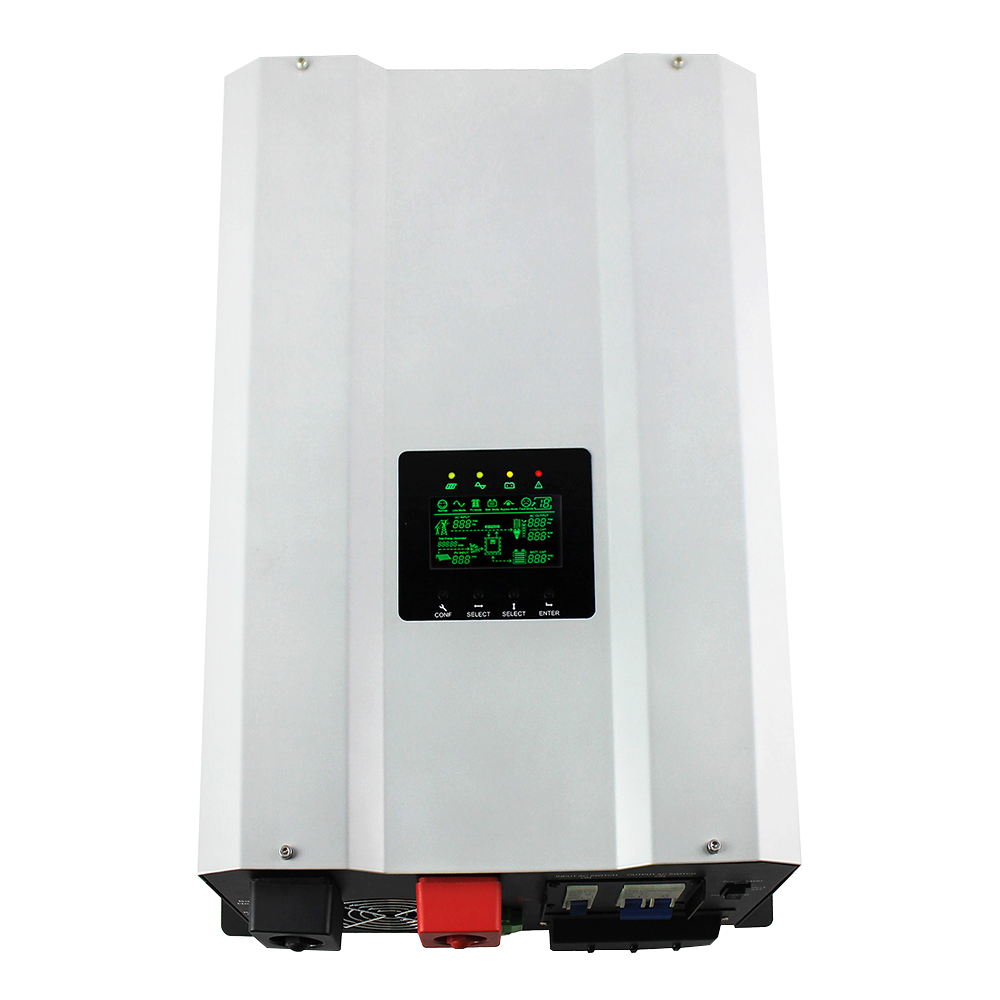

GSII 8KW 10KW 12KW Split Phase Hybrid Solar Inverter
Hybrid Solar Inverters

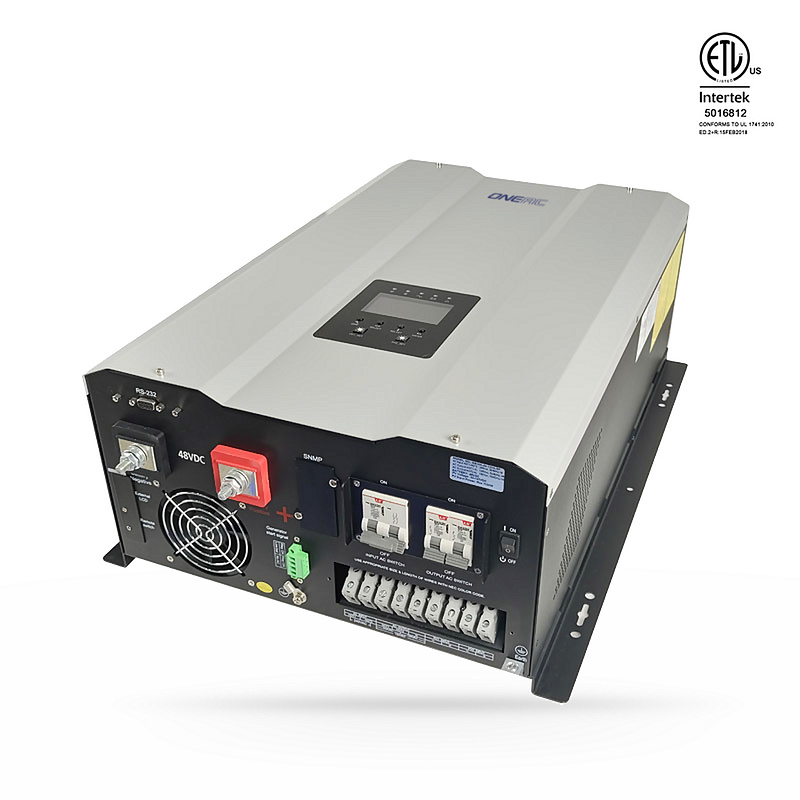

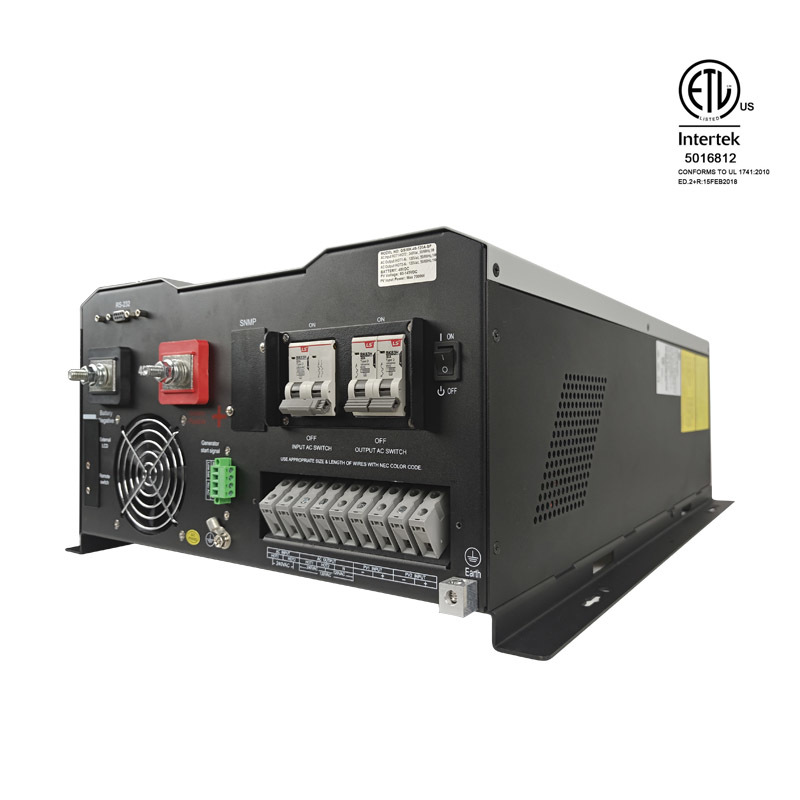

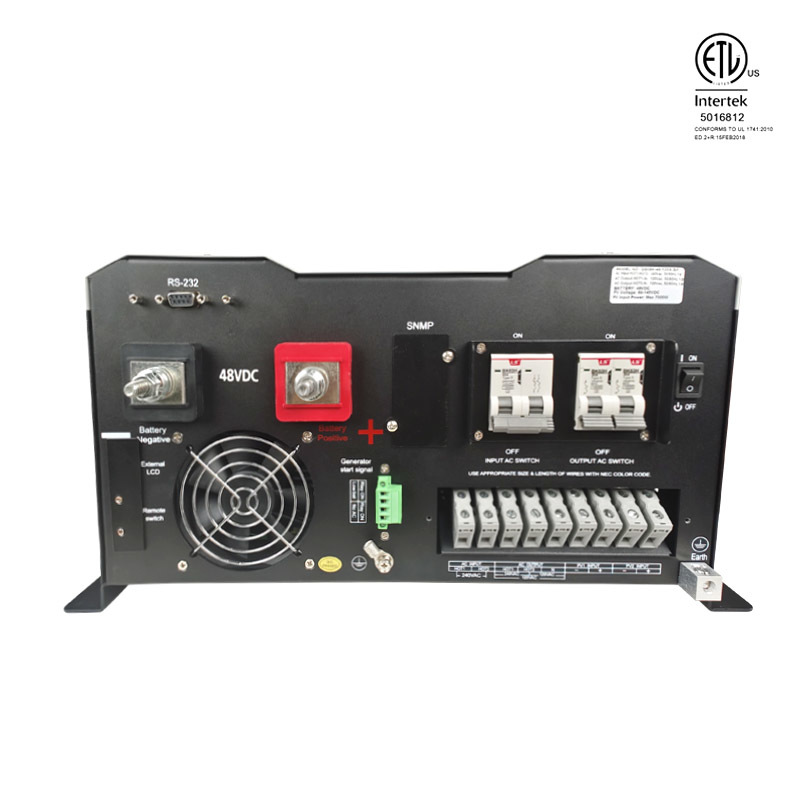

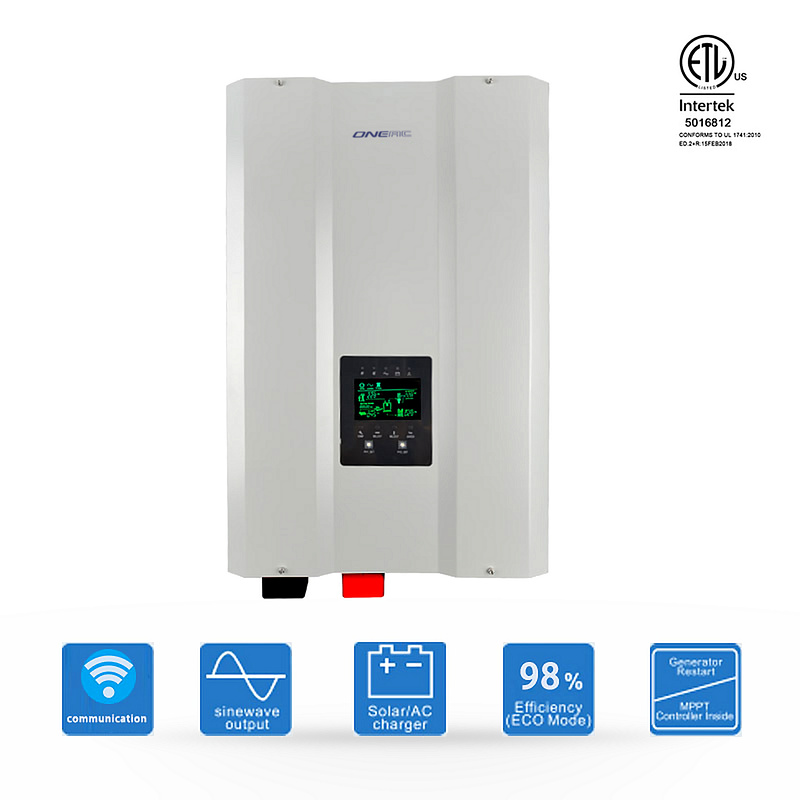

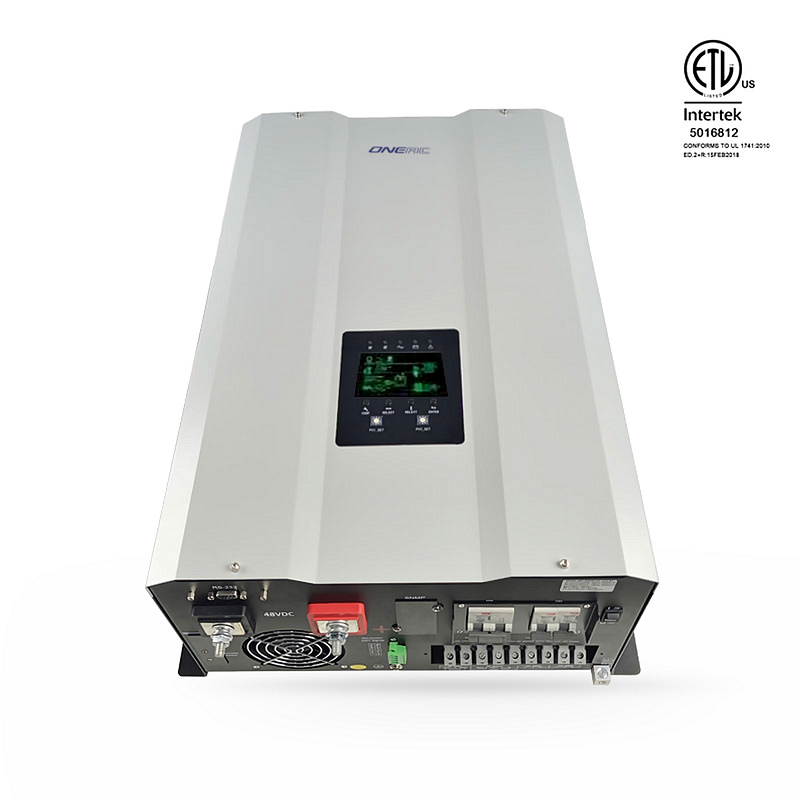

GSII 8KW 10KW 12KW Split Phase Hybrid Solar Inverter

8-12 kWSplit phase

This is a split-phase hybrid inverter GSII series with a capacity of 8kw, 10kw, 12kw, with Wifi communication function.It can be used for LifePO4 batteries but no communication,AGM batteries,GEL batteries,deep-cycle batteries,etc.It is suitable for working in various environments (large farms, villas, factories, forest areas, etc.), and can also be applied...

  • AC/Solar charger Off grid Hybrid lnverter 8KW 10KW 12KW.
  • LED/LCD display,Enhanced functions setting via LCD,Man-machine intelligent design.
  • Built-in 60A optional MPPT solar charger controller.
  • Built-in Wi-Fi for mobile monitoring(Optional)
  • LCD shows the solar capacity.
Ask about this product
Countrywide delivery 12-month local warranty Installation available
All features (10)
  • 5 stages adjustable AC charging current. AC charging also can be closed.
  • AC/DC priority modes can be closed.
  • Generator restart signal(Dry contact).
  • 3 times peak power.Strong loading capacity.
  • Overload,output short-circuit protection.
Specifications
MODELGSII8K-48-120A-SPGSIl10K-48-120A-SPGSIl12K-48-120A-SP
Rated Powe8000W10000W12000W
Surge Power24KW30KW36KW
AC INPUT
Input Voltage WaveformSinusoidal (utility or generator)
Nominal Input VoltageHOT1-HOT2:240VAC
Input Voltage RangeNormal:180-270VAC;Wide:140-270VAC
Input Frequency Range50Hz:46-56Hz;60Hz:56-67H z
AC OUTPUT
Power Factor0.9~1.0
Load connection method(Max)HOT1-HOT2:Full Load;or HOT1-N:Half load;HOT2-N:Half load
Nominal output VoltageHOT1-HOT2:240VAC;HOT1-N:120VAC;HOT2-N:120VAC
Nominal output Frequency50/60Hz±0.3(LCD Adjustable)
Wave FormPure Sine Wave
Transfer time (Max)15ms (DC to AC);20ms(AC to DC)
BATTERY
Nominal Battery voltage48.0VDC
Low Battery shut-down40.0VDC
Floating Charging Voltage54.8VDC
High-voltage protection64.0VDC
Efficiency
Efficiency (Battery mode)≥87%
Efficiency (Line mode）>98%
Solar Charger & AC Charger
Solar Charger TypeDual MPPT
PV Input Max Powe2*3500W
PV Operating Voltage Range60-145V
Max.PV Voltage150V
Max Solar Charging Current120A120A160A
Max AC Charging Current70A70A70A
PHYSICS
Dimension L*W*H(mm)642*449*220
Net weight(kg)52.862.370.8
Communications interfaceRS232/Dry-contact
Operating humidity5% to 95% Relative Humidity(non-condensing)
Operating Temperature-10~45 ℃
Storage temperature-15-60 ℃
STANDARD
Safety certificationCE/ETL
