Hybrid Solar Inverters

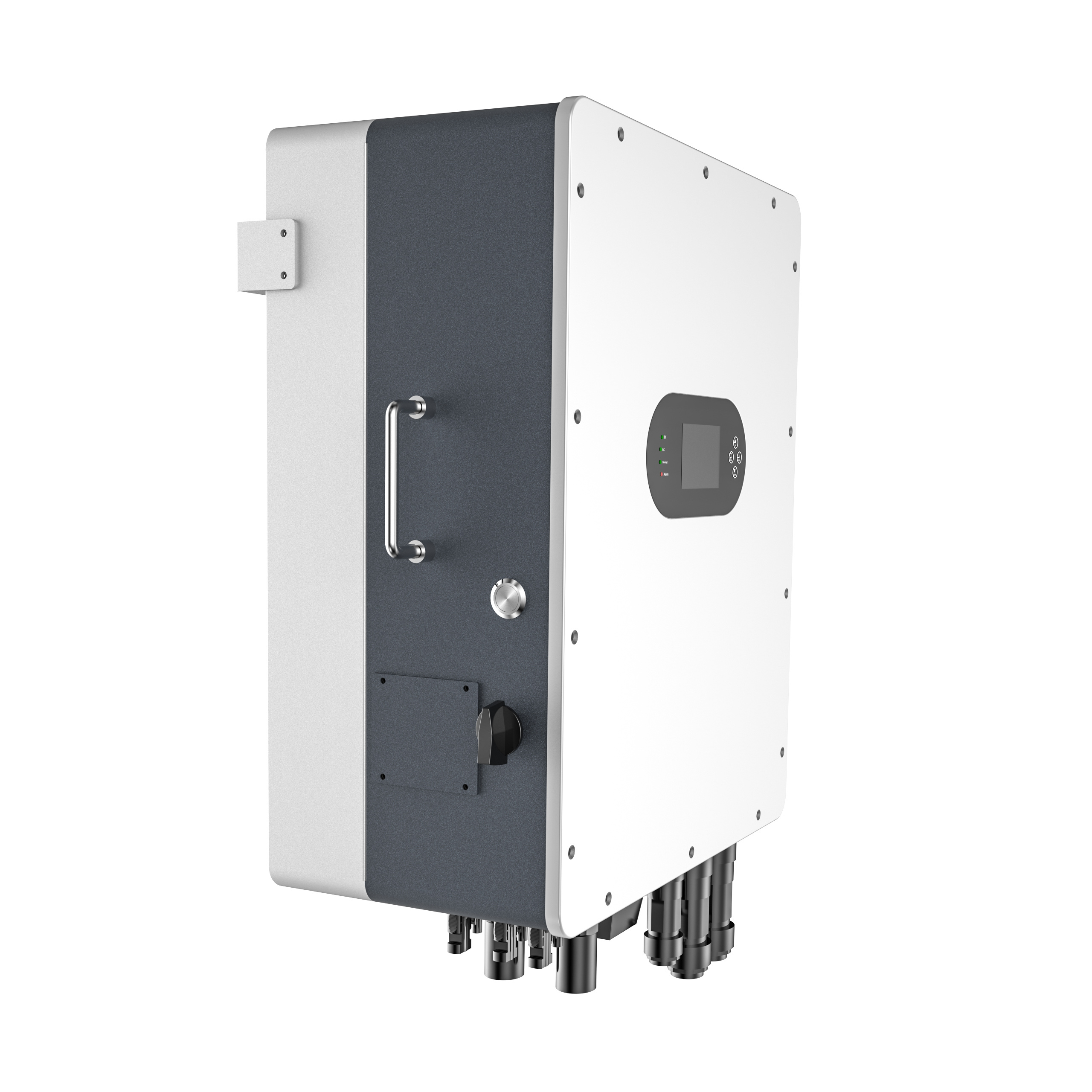

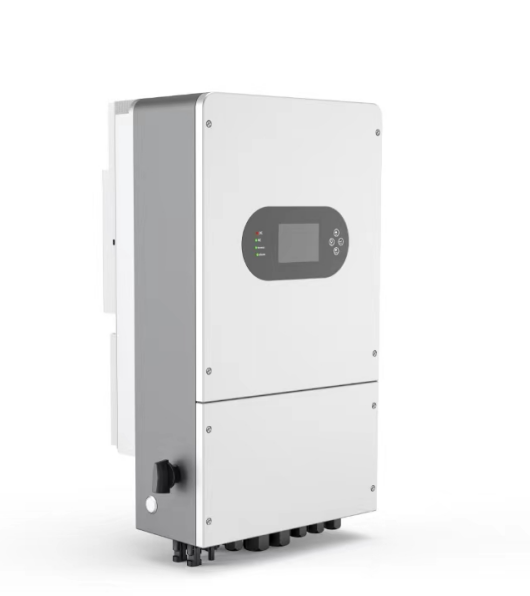

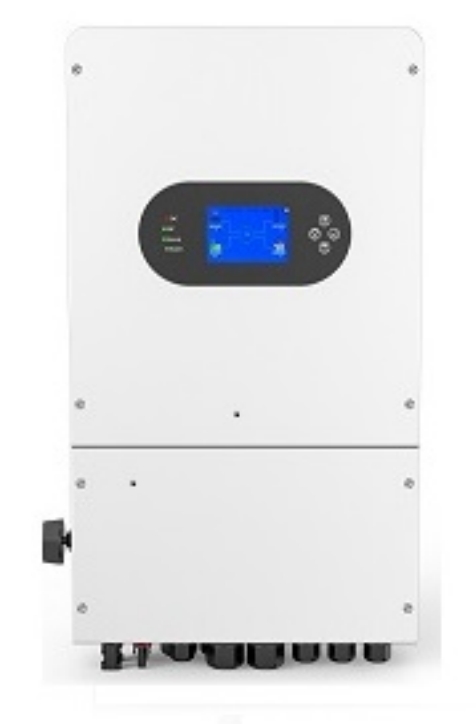

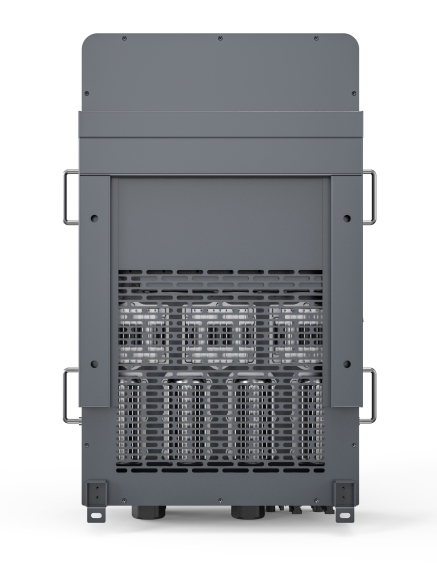

IP65 Hybrid solar inverter single phase/three phase 6kw 8kw 10kw 12kw 15kw 20kw 30kw 40kw 50kw

Name: IP65 Hybrid solar inverter single phase/three phase 6kw 8kw 10kw 12kw 15kw 20kw 30kw 40kw 50kw
Brand: ONEAC
Availability: InStock

6-50 kWIP65 ratedThree phase

Countrywide delivery 12-month local warranty Installation available

Specifications

MODEL	P6KW-EU	8KW-EU	10KW-EU	12KW-EU
Max. DC Input Power (W)	7800	10400	13000	15600
Rated PV Input Voltage (V)	550 (160-800)
Start-up Voltage (V)	160
MPPT Voltage Range (V)	200-650
Full Load MPPT Voltage Range (V)	350-650
Max. DC Input Current(A)	13+13	26+13
Max. DC Short Circuit Current(A)	17+17	34+17
No.of MPPT Trackers	2
No.of Strings per MPPT Tracker	1+1	2+1
Rated AC Output Power (W)	6000	8000	10000	12000
Max AC Output Power (W)	6600	8800	11000	13200
AC Output Rated Current (A)	9.1	12.1	16.7	18.2
Max AC Output Current (A)	10	13.4	18.4	20
Max Output short circuit current (A)	20
Max. Continuous AC Passthrough(A)	45
Peak Power (off grid)	2 times of rated power, 10 S
Power Factor	0.8 leading - 0.8 lagging
Output Frequency and Voltage	50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac
Grid Type	Three Phase
Total Harmonic Distortion (THDi)	<3% (of nominal power)
DC Current Injection	<0.5% In
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	120	160	200	240
Max. Discharging Current (A)	120	160	200	240
External Temperature Sensor	YES
Charging Curve	3 Stages / Equalization
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
Max. Efficiency	97.6%
Euro Efficiency	97.0%
MPPT Efficiency	99.0%
