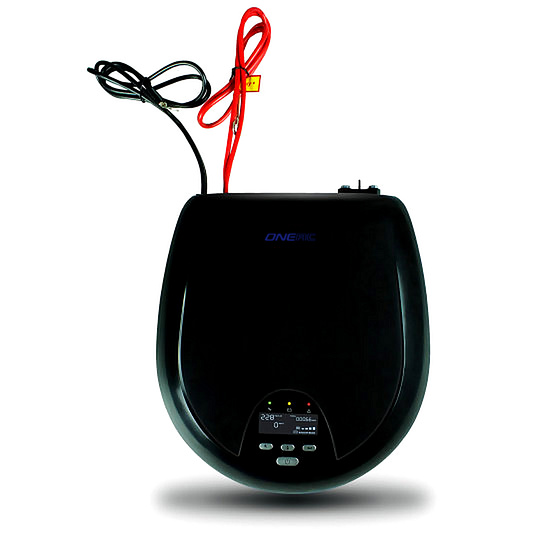

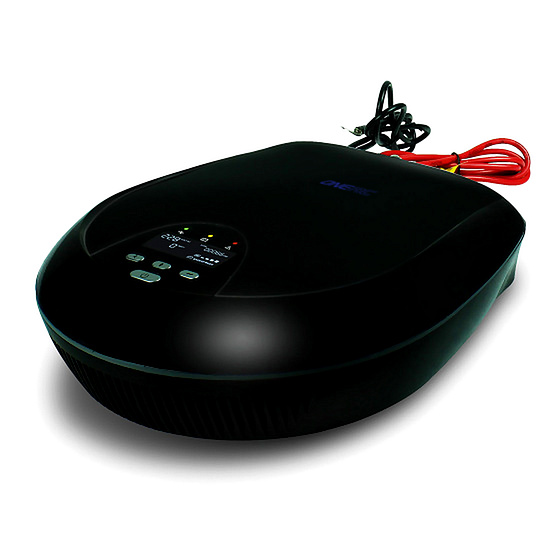

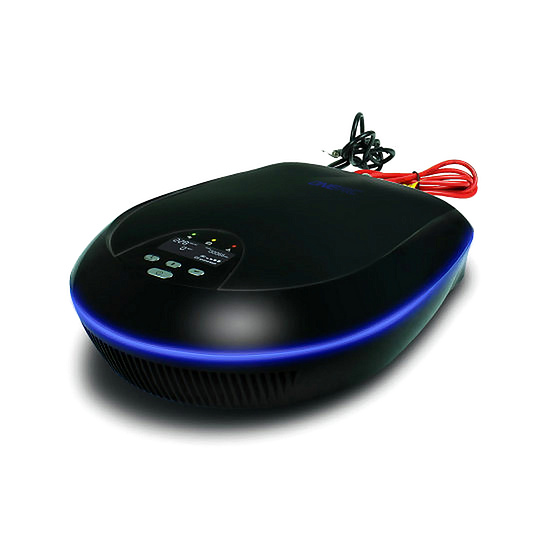

HDX Plus Inverter Series Off Grid Solar Inverter
Off-Grid Solar Inverters

HDX Plus Inverter Series Off Grid Solar Inverter

4. Selectable Input voltage ranges/AC charging current/ AC or solar charger priority.

    Ask about this product
    Countrywide delivery 12-month local warranty Installation available
    Specifications
    ModelHDX Plus1K-12HDX Plus1.2K-12HDX Plus2K-24
    *1 CapacityVA/W1000VA/700W1200VA/900W2000VA/1500W
    Battery & ChargerVDC12VDC24VDC
    AC InputNominal input Voltage220/230/240VAC
    Selectable Voltage Range170-280VAC (Narrow Range);90-280VAC (Wide Range)
    AC OuputOutput Voltage WaveformModified sine wave
    Voltage230VAC
    Voltage Regulation (Batt.Mode)10% / -18%
    Frequency50/60Hz(Adjustable);
    Frequency Regulation (Bat. Mode)±1HZ
    Display IndicatorAC ModeDisplay output power, output voltage
    Battery ModeThe mark will flicker every 1second.
    Battery Charging ModeDisplay the Battery capacity
    FaultDisplay fault
    EfficiencyAC to AC>95%
    DC to AC>80%
    Battery & ChargerCharger Current20Amp15Amp
    Overcharge Protection16V32V
    Transfer TimeTypical15ms Typical, 40ms Max.
    Solar Battery ChargerMax. Input Power450W900W
    Charging Current40Amp
    Nominal Batery Voltage12V24V
    Optimal Work Voltage Range15V~18V30V~36V
    Max.PV Input Voltage55V
    ProtectionFull ProtectionDischarge, overcharge, overload, over temperature protection.
    General SpecificationsOperating Temperature Range0- 50°C, 5%-90 % relative humidity (non-condensing)
    Storage Environment－15°C to 55°C, 5% to 95% humidity (non-condensing)
    Noise LevelLess than 50dB
    Dimension：L*W*H(mm)373*121*305mm
    Net Weight(kg)2.18kg2.49kg2.37kg
