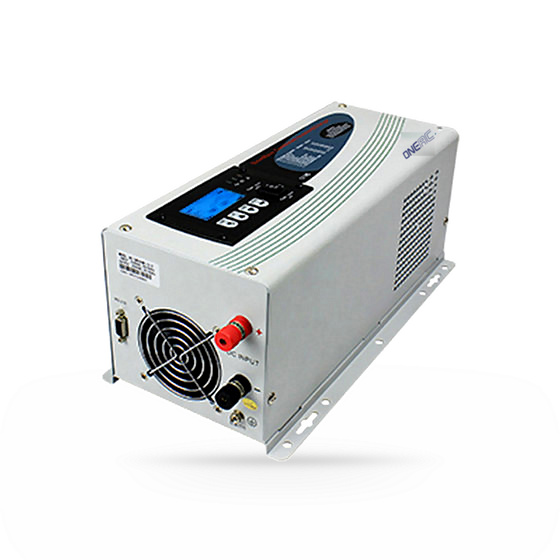

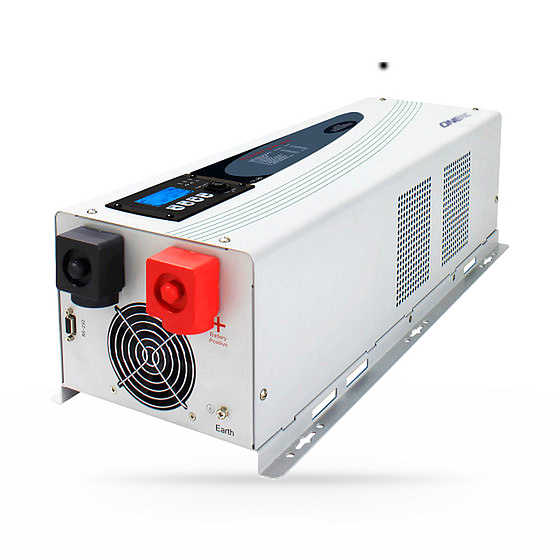

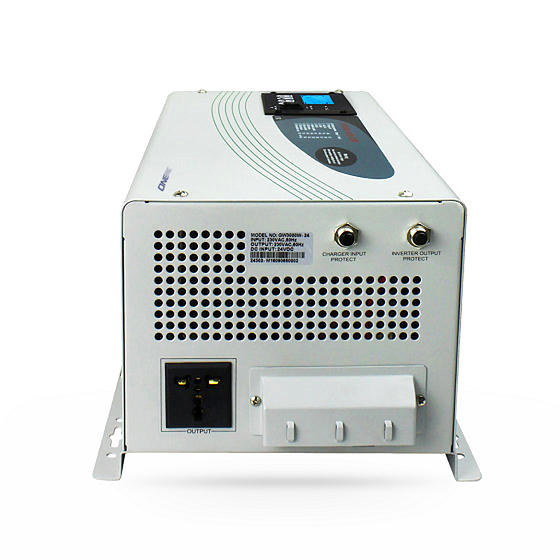

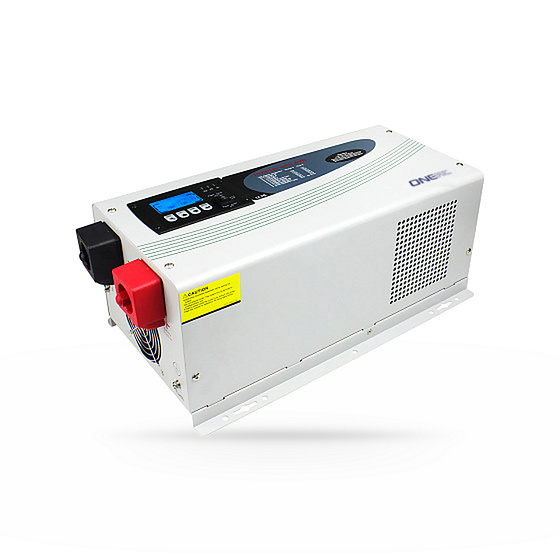

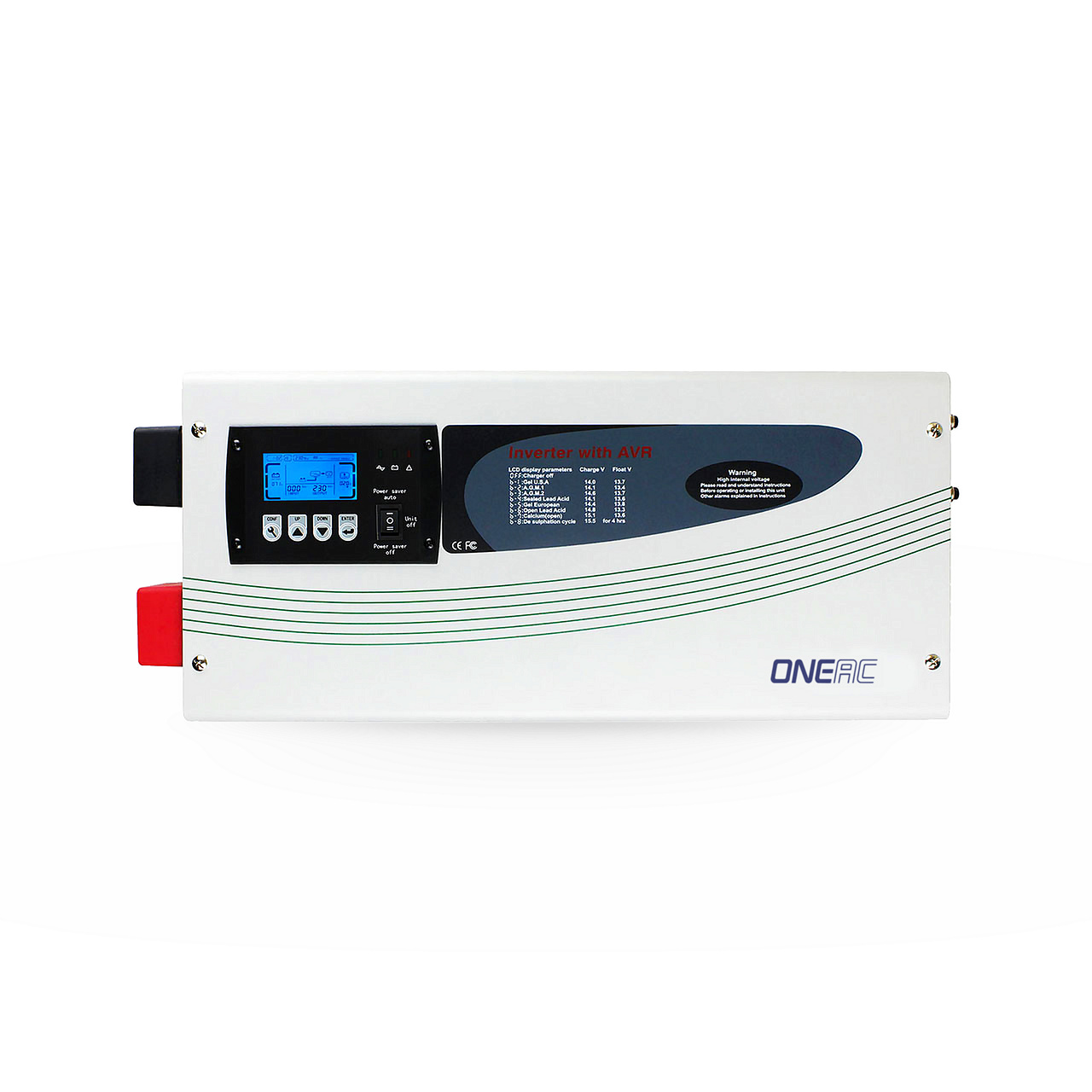

GW Series 1KW 2KW 3KW 4KW 5KW 6KW Pure Sine Wave Inverter
Pure Sine Wave Inverters

GW Series 1KW 2KW 3KW 4KW 5KW 6KW Pure Sine Wave Inverter

1-6 kWPure sine wave

GW Series Pure Sine Wave Inverter Charger 1KW 2KW 3KW 4KW 5KW 6KW, LCD digital display.GW with integrated AVR technology can provide continuous and pure power for the unstable power supply.The ereas inverter is suitable for any home appliance such as home theater,DVD player and power tools,etc.

  • AC mode AVR function.
  • Output voltage.frequency and charging current can be adjusted via LCD display.
  • Pure sine wave output, available for sensitive load.
  • 3-step progressive charging, 7 battery type selector.
  • Accept generator's energy output.
Ask about this product
Countrywide delivery 12-month local warranty Installation available
All features (10)
  • High power factor.
  • Automatically transfer between battery and line modes.
  • RS232 communication port.
  • Protection of over load, over temperature, over charging, low battery
  • Bypass without battery connected.
Specifications
ModelGW1000GW2000GW3000GW4000GW5000GW6000
Power Rating1000W2000W3000W4000W5000W6000W
AC Input
Input Voltage WaveformSinusoidal (utility or generator)
Nominal input Voltage120VAC/230VAC230VAC
Input Voltage Range80Vac-150Vac for 120V, 135Vac-270Vac for 230V
Low Line AVR Disconnect100Vac±4% for 120V, 195Vac±4% for 230V
Low Line AVR Re-connect95Vac±4% for 120V, 185Vac±4% for 230V
Low Line DisconnectNormal:85Vac±4%,Wide:80Vac±4% for 120V,
Normal:154Vac±4%,Wide:135Vac±4% for 230V
Low Line Re-connectNormal:90Vac±4%,Wide:85Vac±4% for 120V,
Normal:164Vac±4%,Wide:145Vac±4% for 230V
High Line DisconnectNormal:136Vac±4%,Wide:140Vac±4% for 120V,
Normal:263Vac±4%,Wide:263Vac±4%for 230V
High Line Re-connectNormal:131Vac±4%,Wide:135Vac±4% for 120V,
Normal:253Vac±4%,Wide:253Vac±4%for 230V
Max AC input Voltage120V for Max150V, 230V for Max270V
Frequency50Hz:41-54Hz, 60Hz:51-64Hz
AC output
Output Voltage WaveformSine wave
Power Factor0.9~1.0
Nominal Output Voltage (V)LV:120Vac ±10%rms, HV:230Vac ±10%rms
Nominal Output Frequency (Hz)50Hz ± 0.3Hz, 60Hz ± 0.3Hz
AC Charger
Nominal Charger Current20A/35A/50A/70A/90A(5 stages adjustable charging current)
Over charge ProtectionBat.V≥15.5VDC for 12V battery,
Bat.V≥31.0VDC for 24V battery,
Bat.V≥62.0VDC for 48V battery,
beeps 0.5s every 1s & fault after 60s
Efficiency
Efficiency (Battery Mode)≥85%
Efficiency (Line Mode)＞98%
Battery Voltage
Nominal DC input Voltage12/24/48Vdc24/48Vdc
Low Battery Alarm10.5VDC±0.3VDC for 12Vdc
21VDC±0.6VDC for 24Vdc
42VDC±1.2VDC for 48Vdc
High DC input Alarm & Fault16VDC±0.3VDC for 12Vdc
32VDC±0.6VDC for 24Vdc
64VDC±1.2VDC for 48Vdc
Transfer Time15ms(max)
System Parameter
Over-Load Protection110%＜load＜150%，beeps 0.5s every 1s，and Fault after 60s off the output，load＞150%，beeps 0.5s every 1s，and Fault after 20s
Output Short Circuit ProtectionCurrent limit (Fault after 10s)
Surge Rating(10s)1:3(VA)
ProtectionsLow battery,over charging,over load,over temp
IndicatorsLED+LCD Display
General Specifications
Operating Temperature Range0℃～40℃
Storage Temperature﹣15℃～60℃
Operation humidity5% to 95%(non-condensing)
Audible Noise60dB max
CoolingForced air,variable speed fan
Dimension L*W*H (mm)475x242x182653x242x185
Net Weight(kg)17.119.322.534.537.638.8
