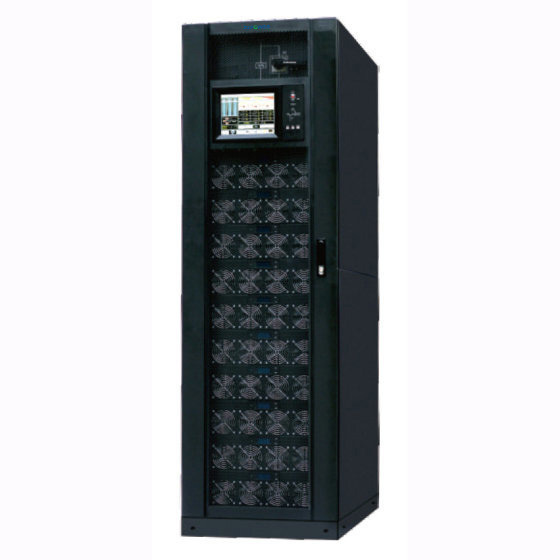

93M Series Modular Online UPS 25-600kVA (380V/400V/415V)
Online UPS Systems

93M Series Modular Online UPS 25-600kVA (380V/400V/415V)

600 kVA

The 93M series modular UPS provides the mostcompact footprint of less than 2m' with maximumcapacity of 900kVA.With best reliability and highperformance, it has been leading the domesticmarket for years.

    Ask about this product
    Countrywide delivery 12-month local warranty Installation available
    Specifications
    MODEL93M600/30X93M300/30X93M180/30X93M500/25X93M250/25X93M150/25X
    System Capacity600kVA300kVA180kVA500VA250kVA150kVA
    Power Module Capacity30kVA/27kW25kVA/25kW
    InputDual InputOptional
    Phase3 Phase+Neutral+Ground, 380V/400V/415V(line-line)
    Input Voltage Range304~478Vac (line-line),full load; 228V~304Vac (line-line),load decreases linearly according to the min phase voltage
    Rate Frequency50/60Hz
    Input Frequency Range40Hz～70Hz
    BypassInput PF>0.99
    Input THDi<3% （100% Linear load）
    Rate Voltage380/400/415VAC (line-line)
    Rate Frequency50/60Hz
    Input Voltage RangeSettable, -40%～+25%
    OutputBypass Frequency RangeSettable, ±1Hz, ±3Hz, ±5Hz
    Bypass Overload110% long term operation; 125% for 5 mins ;150% for 1 min; 400% for 1s
    Rate Voltage380/400/415VAC (line-line)
    Voltage Regulation1% for balance load; 1.5% for unbalance load
    Rate Frequency50/60Hz
    Frequency Precision0.1%
    Output PF0.91
    Output THDu<1% , Linear load; <5.5%, Non-linear load
    Crest Factor3:1
    BatteryInverter Overload110% for 1 hour; 125% for 10 mins ;150% for 1 min; >150% for 200 ms
    Voltage±240VDC
    Battery Number40pcs (Settable: even number from 32 to 44)±1%
    Voltage Precision
    Charge Powerup to 20% * Output active power
    Battery Cold StartStandard
    EfficiencyAC Mode95.5%
    ECO Mode99.0%
    Battery Mode95.0%
    SystemDisplay10.4" color touch screen LCD + LED + keyboard
    IP ClassIP 20
    InterfaceRS232,RS485, Programmable Dry Contact, USB
    OptionSNMP Card, Parallel kit, SPD, LBS,Dust filter, Expansion dry contact card
    TemperatureOperation: 0～ 40 ℃ Storge: -40 ～70 ℃
    Relative Humidity0 ～95% Non-condensing
    Altitude<1000m. Within 1000m to 2000m, power derate 1% for every 100m rise
    Noise (1 meter)72dB@100%load 65dB@45%load65dB@100%load 62dB@45%load72dB@100%load 65dB@45%load65dB@100%load 62dB@45%load
    Applicable StandardsSafety: IEC/EN 62040-1-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3
    PhysicalWeight (kg)Cabinet660220165660220165
    Power module3433
    Dimension W*D*H(mm)Cabinet2000*1050*2000600*1100*2000600*1100*16002000*1050*2000600*1100*2000600*1100*1600
    Power module460*790*134
