ONEAC

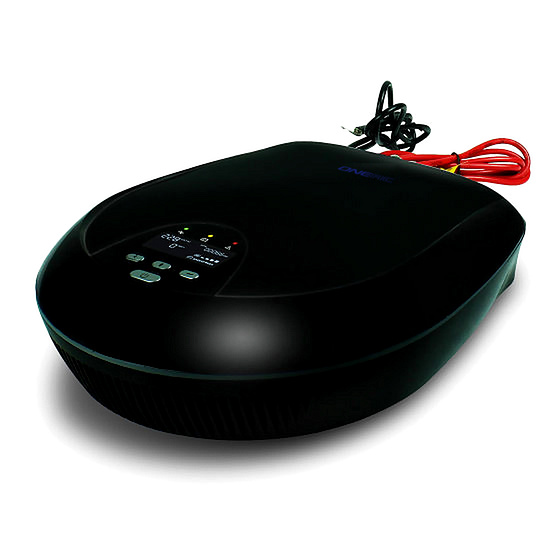

HDX 1000VA 1200VA 2000VA High-Frequency Home Solar Power Inverter Charger
Off-Grid Solar Inverters

HDX 1000VA 1200VA 2000VA High-Frequency Home Solar Power Inverter Charger

1000-2000 VA

HDX 1000VA 1200VA 2000VA is a DC to AC modified sine wave inverter applied to TVs, lights, laptops, computers, and other home appliances. It automatically converts battery energy into AC power for backing up the connected devices. It’s the best choice for the user who needs a simple and economical inverter, with user-friendly settings and installations.

    Ask about this product
    Countrywide delivery 12-month local warranty Installation available
    Specifications
    MODELHDX1000-12HDX1200-12HDX2000-12
    CAPACITY1000VA/700W1200VA/900W2000VA/1500W
    BATTERY12VDC12VDC24VDC
    INPUT
    Nominal Voltage220/230/240VAC
    Voltage Range170-280VAC (Narrow Range)
    90-280VAC (Wide Range)
    OUTPUT
    Voltage230VAC
    Voltage Regulation (Bat. Mode)10% / -18%
    Frequency50Hz or 60Hz
    Frequency Regulation (Bat. Mode)±1 Hz
    Output WaveformModified Sine-wave
    BATTERY & CHARGER
    Charger Current20Amp20Amp15Amp
    Overcharge Protection16V16V32V
    TRANSFER TIME15ms Typical, 40ms Max.
    EFFICIENCY
    AC to AC>95%
    DC to AC>80%
    DISPLAY INDICATOR
    AC ModeDisplay output power, output voltage
    Battery ModeThe battery mark will flicker every 1 second.
    Battery Charging ModeDisplay the Battery capacity
    FaultDisplay fault
    AUDIBLE ALARM
    Low Battery at Battery ModeSounding every 2 seconds
    OverloadSounding every 0.5 second
    FaultContinuously sounding
    PROTECTION
    Full ProtectionDischarge, overcharge, overload, over-temperature protection
    PHYSICAL
    Dimension (DxWxH) mm296.4*268.1*90.6
    Net Weight (kg)1.98kg2.29kg2.17kg
    ENVIRONMENT
    Operating environment0- 50°C, 5%-90 % relative humidity (non-condensing)
    Storage Environment﹣ 15°C to 55°C, 5% to 95% humidity (non-condensing)
    Noise LevelLess than 50dB
